SL 8214101 3 Tiffany Opal Lamp Fixture Set w 4LEDs for LGB Bier Wagon +LED controller +buffer comes assembled for EZ install in minutes
SL 824101 SET
Easy install in minutes, Pre-wired, Wire lengths dressed to fit => NO Soldering Required
Car not included with lighting set
Car not included with lighting set
Car not included with lighting set
Car not included with lighting set

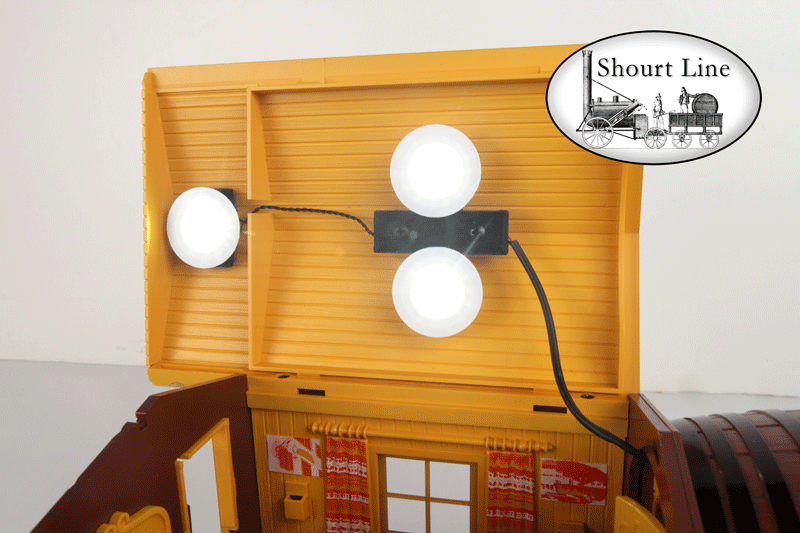

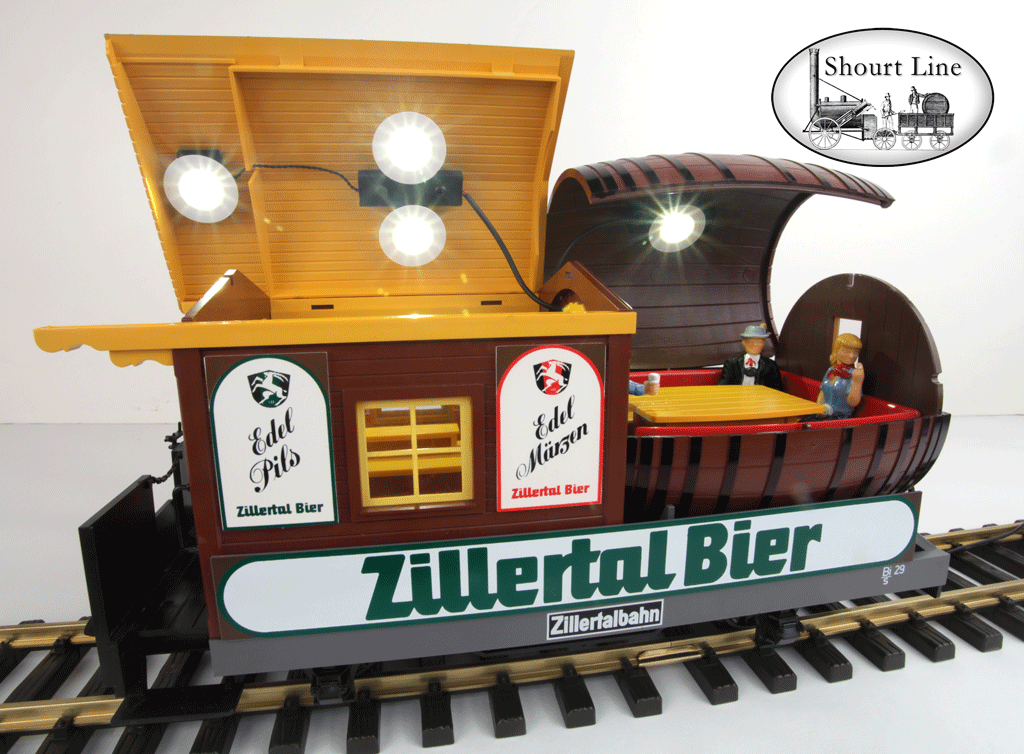

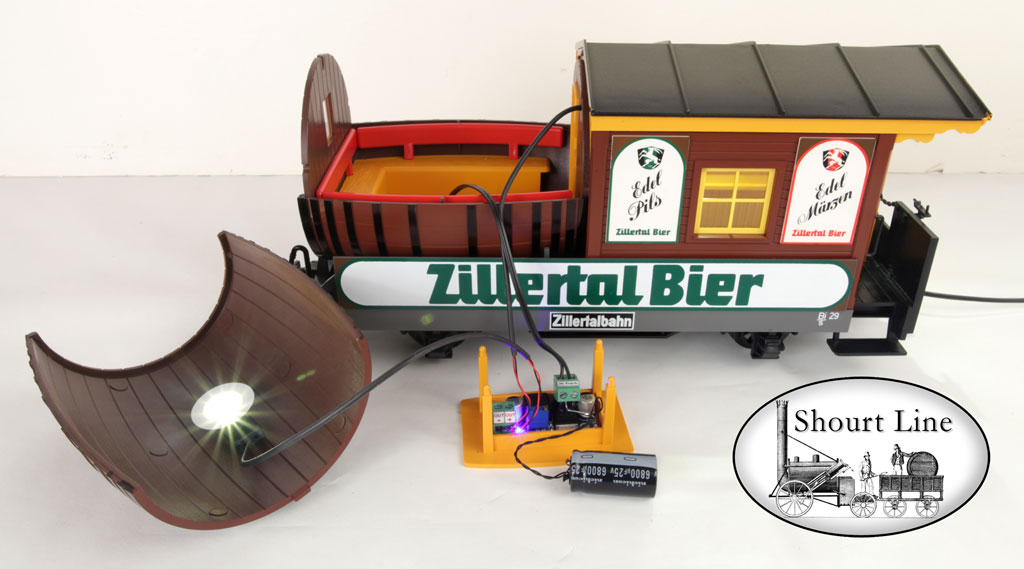

Show above is SL 824101 SET with Tiffany Opal fixtures and included LED controller with status blue LED, wired buffer installed. The barrel roof is off to show the Tiffany fixture mounted to the interior roof of the barrel. The 3 Tiffany fixture set that is pre-wired and assembled for easy installation. The SL LED controller and 6.8K anti-flicker power buffer shown above are included with this wired set. Only a screw driver is required to install in minutes!
A perfect G scale addition to your LGB Bier Wagon - we have kits and assembled sets for all LGB, PIKO and other G scale cars.
Shourt Line Direct Discount Price: $79.95 + S&H $9.00 (contact us for combined shipping on multible items)
Set Includes:
- 3 SL Opal Tiffany Lamp Prototypical gas/electric Lighting Fixtures:
- Pre-Wired
- 1 SL 8202230 assembled & wired Tiffany Opal 2 Lamp Fixture with 2 warm white LEDs for screw mounting in Bar ceiling

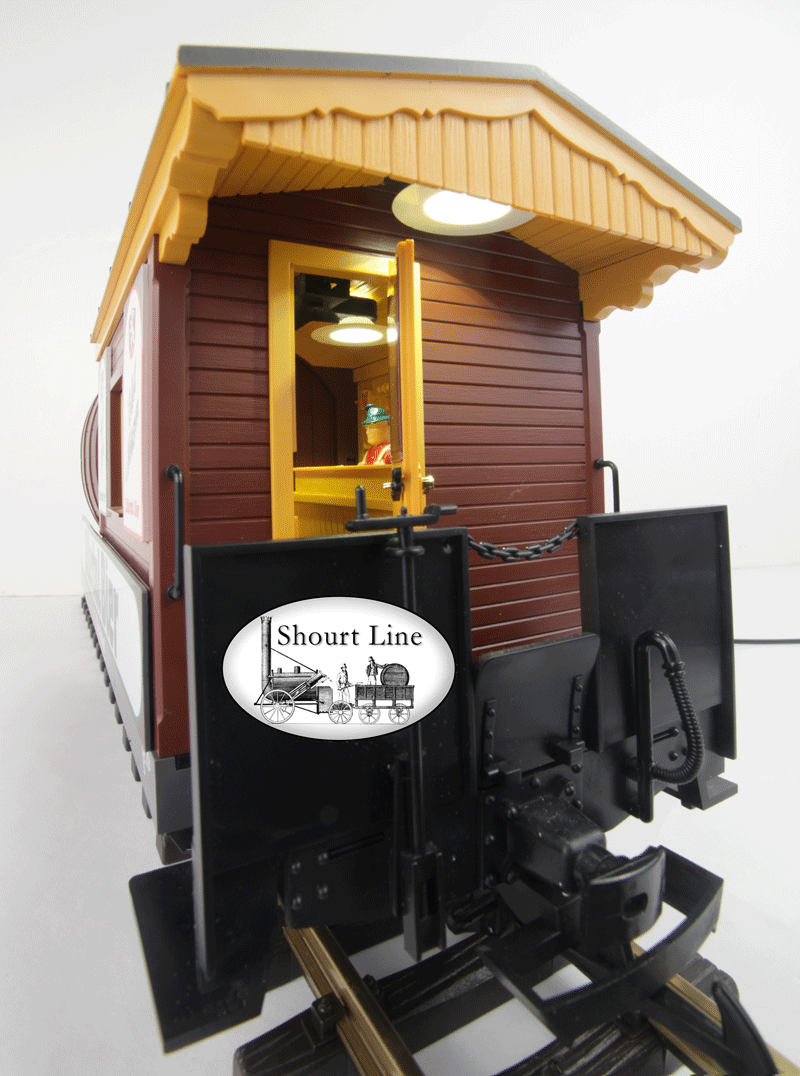

- 1 SL 8271231 assembled & wired Tiffany Opal 1 Lamp Fixture with 1 warm white LED w 3M peel and stick pads for car porch roof mounting
- 1 SL 8201230 assembled & wired Tiffany Opal 1 Lamp Fixture with 1 warm white LED w 2 screws for mounting in Barrel seating area.
- 1each 18" SL black micro 2 conductor polarized power cable for your choice of power.
- 1 wired and preset SL-8453404 LED controller with indicator LED & peel and stick 3M mounting pad for hidden mounting on the bottom of the table in the barrel seating area of the car. The controller can power up to 300 LEDs.
- 1 SL-6111068 6.8K anti-flicker buffer that is soldered to the + and - inputs of the LED controller to eliminate flicking from power interruptions
- Instructions for assembly (shown below)
Set Features: Made by the Shourt Line in the USA
Easy install in minutes, Pre-wired, Wire lengths dressed to fit => NO Soldering Required
Each set contains a assembled and wired Tiffany Lighting fixtures for soft white illumination of both interior seating areas and the porch platform entrance to the bar. 4 screws are included for interior fixture mounting and a 3M adhesive peel and stick pad is provided to mount the porch fixture. Installation is fast and easy. Instructions for assembly are shown below.
- Tiffany Opal Fixtures with Warm White Illumination
- Match the color temperature of LGB bulbs
- The Tiffany Lamp Shades provide diffused and even illumination unlike the harsh illumination of bare bulbs or LEDs.
- Easy Install
- Easy to mount in minutes
- Only a screw driver required to connect the 2 interior fixtures
- No tools required to mount the porch fixture
- 4 screws for mounting the interior fixtures
- All fixtures are designed to exactly match the roof slope angle and to provide full even illumination in each area
- Terminal strips are provided on the LED controller for powering Tiffany fixtures, optional red running rear lights, and for hooking up power leads. Only a screw driver is required for hookup and installation!
Shourt Line LED Controller pre-wired and ready to mount using the peel and stick 3M pad
- Shourt LineSL-8453404LED controller with terminal block for track input power to eliminate soldering
Car not included with lighting set
Options: Power Source, Additional Lighting, Power Pickup, and Sound System
- Power Source Options - Power the included Shourt Line SL-8453203 LED controller from your choice of power source:
- Track Power via your LOCO's rear power connectors (lowest cost)
- Track Power via a car with power pickup wheels (low cost)
- Ball bearing power pickup wheels (lowest drag - highest cost)
- Metal Wheels + Shourt Line power pickup set (low cost - best prototypical appearance using spoke metal wheels)
- A 9 volt rechargeable battery for about 10 hours of full lighting - Shourt Line Li-ion 9 Volt rechargeable battery with SL snap on power clip is Recommended (low cost - high maintenance unless charged from track power) (has advantage on analog layouts of up to 10 hours of full LED lighting without any track power)
- Shourt Line rechargeable Li-ion battery and charger circuit for track or USB port charging (low cost - high maintenance unless charged from track power) (has advantage on analog layouts of up to 20 hours of full LED lighting without any track power)
- Additional Lighting
- Optional red rear running lights to avoid rear end collisions(ask us for details)
- Optional white and color changing party lighting (ask us for details)
- Power Pickup
- Optional Power Pickup Ball-Bearing Wheel Sets
- LGB L67403 Ball-Bearings Metal Wheelsets w/Pickups, 30mm, 2 Pcs
- PIKO P36167 Ball-Bearing Metal Wheelsets w/Pickups, 30mm, 2 Pcs
- Optional Power Pickup Set for LGB or PIKO metal wheels
- SL 6011604 Ultra Low Drag Power Pickup Set - for power pick up from the inside flange of LGB, PKO and other make metal wheels
- SL 6011605 Super Ultra Low Drag Power Pickup Set - for power pick up from the plated axle on PIKO P36164 Metal Wheel
- Optional LGB and PIKO German made metal wheel sets
- Use PIKO P36164 Metal Wheelsets, 30mm, Plated wheels for ultra low rolling friction
- Use LGB metal wheels; solid metal wheels LGB L67419, spooked metal wheels LGB L67319, double spooked metal wheels LGB L67320 all in stock at the ShourtLine.com
- Optional Shourt UPS Gold Cap buffer
- SL-6102100 .1 Farad 27V Micro size LED Power Buffer - UPS Gold Cap Super Capacitor 2 Buffer for up to 60 seconds of LED lighting without track power
- Optional Power Pickup Ball-Bearing Wheel Sets
- Sound System
- Optional Shourt Line 3 Watt Sound MP3 player/speaker system with your choice of beer music

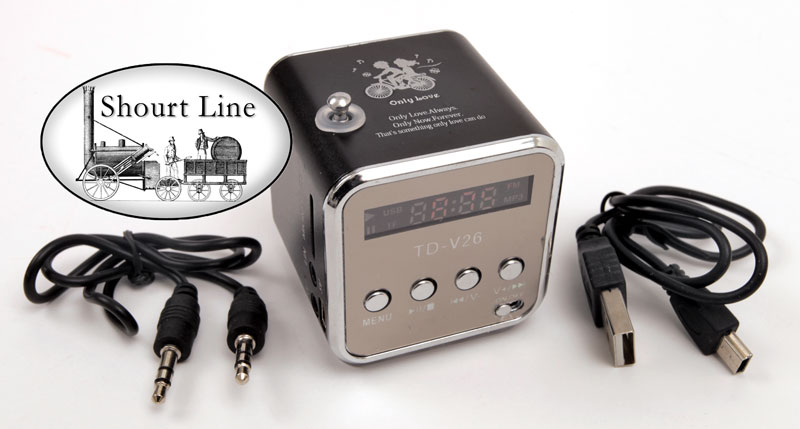

- Shourt Line MP3 & FM 3 Watt Sound System - Player uses either a USB or micro-Flash Card (not included) for up to 10 hours of music playback and has rechargeable Li-ion battery for up to 1 hour of music, can be recharged from track power using the Shourt Line USB track charger.
EZ Install Instructions:

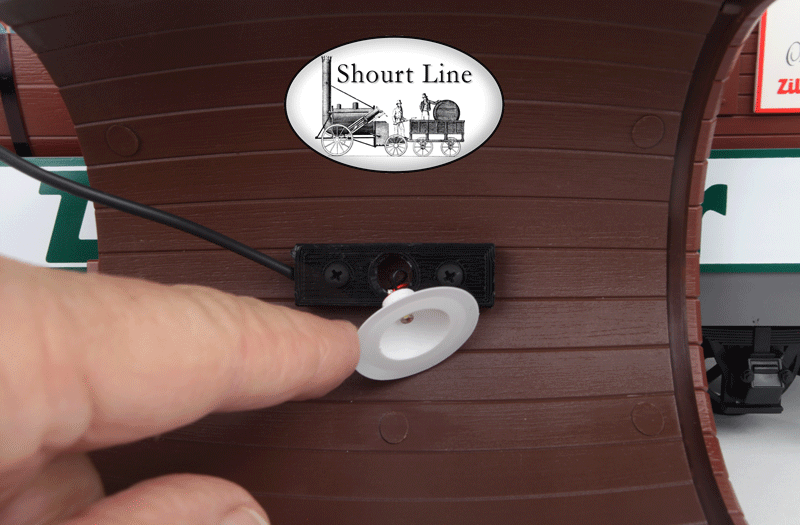

Step 1 Mount the single Tiffany fixture with 2 mounting holes with the 2 supplied screws and place the Tiffany lamp in center hole of the fixture after mounting to barrel.

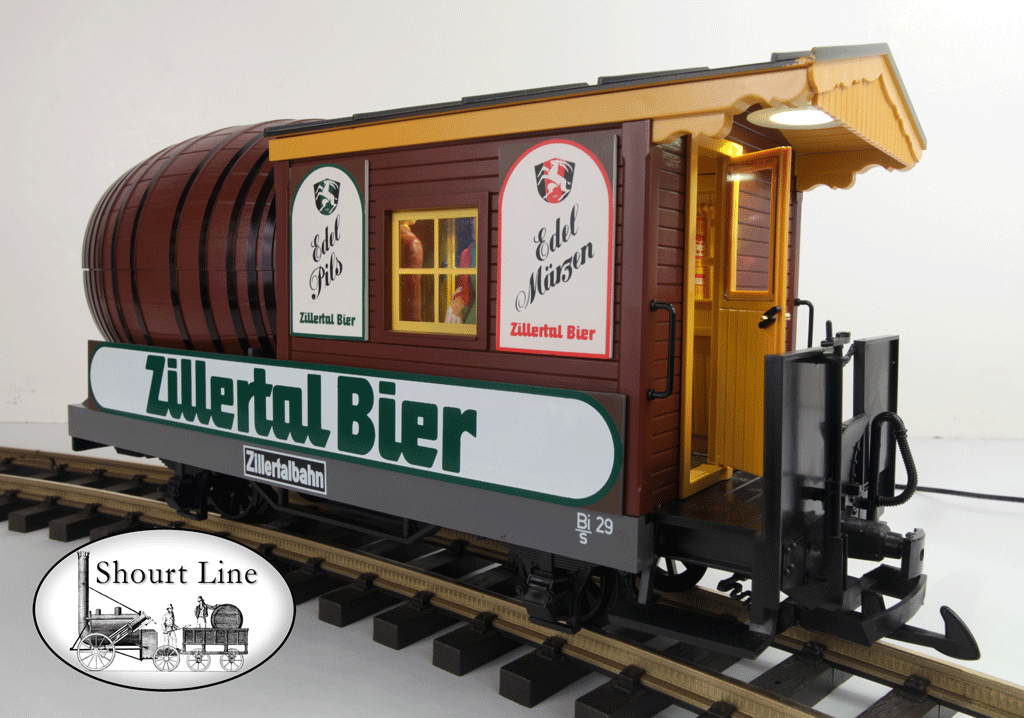

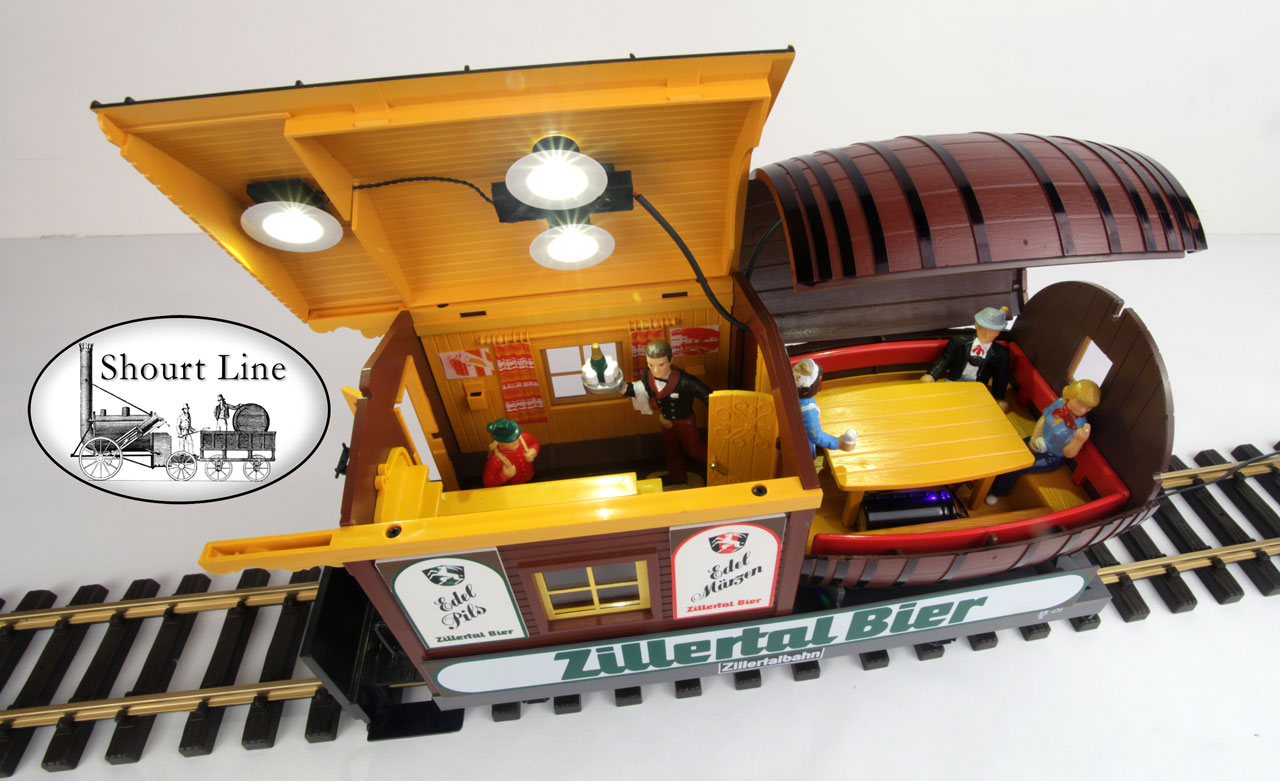

Car not included with lighting setStep 2 Mount the 2 LED Tiffany fixture to the center of the bar roof studs with the supplied screws and the 1 LED Tiffany fixture with 3M pad to the porch end of the roof. Be sure to position the porch fixture in the center of the roof and less than 1mm (1/20") from the inside edge of the roof as shown below. Check you are centered and near the edge before pressing down on the fixture to set it in place.
Car not included with lighting set
Route the cable from the fixture through the access slot between compartments and into the barrel side of the car as shown above.Step 3 Remove table from keg seating area and place upside down on on a flat surface next to the car and connect the wires from both the bar and barrel fixtures to the terminals on the LED controller. Connect the red (or copper color) wire to the (+) and the black (or silver) wire to the (-) terminals as shown below:
Car not included with lighting set
The SL-8453404 controller is preset for maximum LED brightness but can be adjusted down to dim the output using the instructions included with your set and shown below in the circuit diagram. The voltage of SL LED controller is preset to the proper 3.1Volts for maximum bi rightness.Wiring diagram for SL LED controllers
Step 4 Remove 3M red backing from the SL-8453404 LED controller and attach to the bottom of the table as shown above.
Car not included with lighting setStep 5 Route wires from power pickup set or ball bearing power pickup wheels, or your other choice power and connect to SL LED controller Track IN screw terminals on the SL-8453404 LED controller as shown below. The track input terminals are not polarized and will work from AC, DC or DCC power input up to 30 volts. If you car does not have a hole in the center of the rear truck and you want to use wheel power pickup, drill out the hold by removing the axle first. This is the best way to route the power cable to the bottom of the car.
Car not included with lighting set

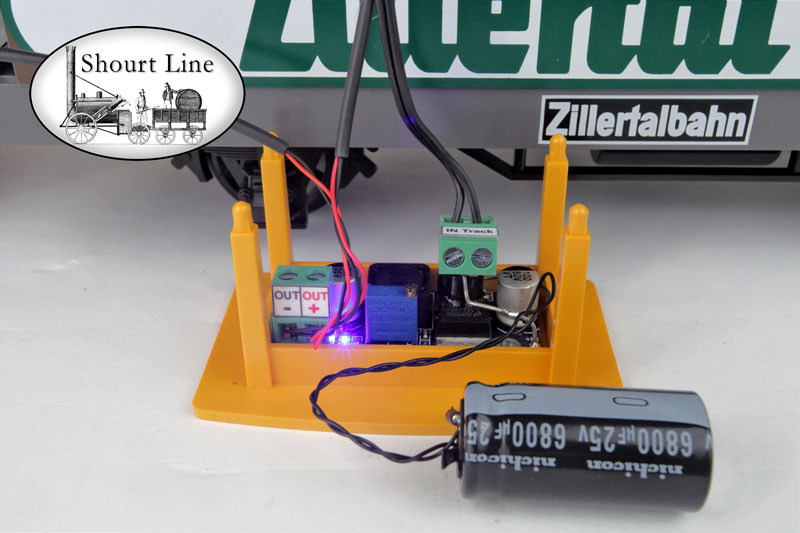

The SL-8453404 has a blue status LED that lights when power is on. The SL-8453404 in the set comes wired to a an SL 6111068 6.8K anti-flicker buffer that fits out of sight on the floor of the car as shown in the photo below.
Step 9 Add folks to enjoy the bier and refreshments
Car not included with lighting setStep 10 Replace roofs, place on track and enjoy a beer yourself!
Car not included with lighting set
Photos:
Car not included with lighting set
Car not included with lighting set
Car not included with lighting set
Car not included with lighting set
Other lighting sets available for LGB and PIKO cars - contract the Shourt Line for details
